Types of MDF Panels: Standard, MR, FR & HDF Explained

MDF panels come in four main types: standard MDF for dry rooms, moisture resistant (MR) MDF for humid rooms, fire retardant (FR) MDF for spaces with fire rules, and HDF for thin, hard parts. The grade is set by the resin, the additives, and the pressing density, not by the wood fiber itself.

This guide was prepared by the technical team at SUMEC Building Material, a Chinese engineered wood manufacturer founded in 1999. It explains what each MDF type is, how to spot it, which grade codes apply, and where each one fits. It also covers surface options, selection by application, and the mistakes buyers make most often.

MDF Panel Types at a Glance

The table below compares the four main MDF panel types across the points that matter most when a grade is specified.

Attribute	Standard MDF	MR MDF	FR MDF	HDF
Typical density	600–800 kg/m³	600–800 kg/m³	600–800 kg/m³	Above 800 kg/m³
Binder or additive	Standard UF resin	Upgraded or moisture resistant resin	Fire retardant additives	Standard or upgraded resin
Common ID color (mill practice)	Natural brown	Green at some mills	Red at some mills	Natural brown
Product standard type	EN 622-5: MDF	EN 622-5: MDF.H	EN 622-5: MDF (dry use)	Higher density fibreboard, outside EN 622-5 types
Fire classification	Not applicable	Not applicable	EN 13501-1, commonly B-s1, d0	Not applicable
Common thickness	Thin to thick, per order	From about 6 mm, per order	From about 6 mm, per order	2.5–8 mm for door skins, thicker per order
Main use	Dry interior furniture	Kitchens, humid rooms	Public and commercial interiors	Door skins, thin panels
Key limit	Not for damp areas	Not waterproof	Not load-bearing	Costs more per sheet

Standard MDF covers most jobs. The other three solve one specific problem each.

Why MDF Is Produced in Different Grades

MDF is graded because one panel cannot meet every condition. The wood fiber inside each type is much the same. What changes is the glue system, the additives mixed in, and how hard the mat is pressed. Those three variables control how the panel reacts to humidity, to flame, and to load. Every difference in the sections below traces back to one of them.

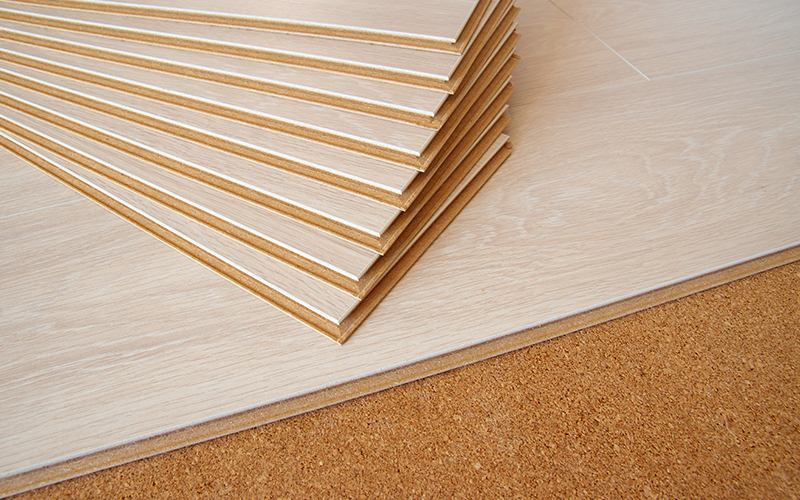

Standard MDF: The Baseline Grade for Dry Interiors

Standard MDF is the default grade for dry indoor use, and it is the grade most buyers mean when they simply say MDF. It is bonded with urea-formaldehyde resin and pressed to a density of about 600 to 800 kg/m³. In the European system EN 622-5, this is the plain MDF type, meant for general use in dry conditions.

Its main value is the surface. There are no knots, no grain, and no voids, so the face takes paint evenly and the edges rout cleanly. That makes it the usual base for shaped and painted parts, such as cabinet fronts, mouldings, and wall units. The industry supplies a wide thickness range, from thin sheets to thick boards, with the exact sizes confirmed per order.

The limit is simple. Standard MDF has no moisture protection built in. In a damp room it will swell at the edges, and that swelling does not reverse once the panel dries.

Moisture Resistant MDF for Humid Interiors

MR MDF is standard MDF made with a stronger glue system so it swells less in humid air. The resin is either an upgraded urea-formaldehyde or a different moisture resistant binder. In EN 622-5 this grade is coded MDF.H, and it is rated for interior spaces with relative humidity up to about 80 percent, with only short exposure above that.

Mills check the grade with a hard cyclic test. Samples go through cold water soaking, freezing in air, and drying at 70 °C, and the cycle runs three times. Thickness swelling and internal bond are measured after. In immersion tests, standard MDF often swells 10 to 15 percent in thickness, while MR grades usually fall in the 7 to 12 percent range.

The green core some mills add is a factory marking, not a legal certification, so the spec sheet still matters. MR MDF is also not waterproof. It handles humidity, not standing water. For humid-room parts, a pre-finished panel such as waterproof melamine MDF combines the grade and the surface in one sheet, which removes a finishing step on site.

Fire Retardant MDF for Regulated Public Spaces

FR MDF is MDF made with fire retardant additives so it slows flame spread. It is used where a building code sets a reaction-to-fire class for interior linings. Typical settings include public buildings, commercial partitions, and exhibition stands.

The additives do two things. They delay ignition and flame spread, and they stop the panel from forming burning droplets. Fire performance is graded under a separate standard from the MDF product standard. Under the European system EN 13501-1, FR grades are commonly classified B-s1, d0. Some mills dye the fiber red so the grade can be told apart on site.

Two points matter for specification. FR MDF is a non-load-bearing panel for dry conditions, so it should not be used to carry structural load. It is also fire retardant, not fireproof. It buys time and limits spread, but it still burns. Projects that need both fire performance and humidity resistance should confirm which property the code actually requires.

HDF: The High Density Fiberboard Option

HDF is fiberboard pressed to a higher density than MDF, usually above 800 kg/m³. It uses the same fiber and the same basic process, but more pressure and more resin per cubic meter. That is the whole difference, and it is not a matter of thickness.

The denser core gives a harder face, a cleaner machined edge, and lower thickness swelling than standard MDF. It also holds fine detail well, which is why HDF is the standard base for moulded and flush door skins. HDF for door skins is usually thin, roughly 2.5 mm to 8 mm, because the value is in a thin part that stays hard and flat. Thicker HDF can be produced to order.

HDF costs more per sheet than MDF, so it is specified where hardness or thinness is required, not as a general upgrade. Door skin HDF is normally made to order, with the pattern and panel size confirmed by the mill at the quotation stage.

Surface Options Available Across MDF Grades

Surface finish and panel grade are two separate choices, and both belong in a purchase order. The list below covers the surface types commonly available on MDF panels.

• Raw MDF: sanded and unfinished, for buyers who paint, wrap, or laminate in their own factory.
• Melamine faced MDF: decor paper pressed onto the panel, available in ordinary and waterproof versions, for cabinets, wardrobes, and office units.
• UV melamine MDF: a melamine layer cured by UV light, which gives a harder and glossier face for high-wear surfaces.
• Natural wood veneered MDF: real wood veneer bonded to the face, for reception joinery, feature walls, and premium doors.

A finished surface protects the panel face, but the cut edges are still exposed. Edge banding stays necessary on every grade.

How to Choose the Right MDF Panel Type

The right grade depends on the room, the code, and the part. The four cases below give a first choice, a workable option, and one thing to avoid.

Dry interior furniture and painted parts

• First choice: standard MDF, for cabinet fronts and mouldings, because it paints and routes better than any other panel.
• Good option: melamine faced MDF, when a finished surface saves site work.
• Avoid: paying for MR or HDF where humidity is not an issue.

Kitchens, bathrooms, and humid rooms

• First choice: MR MDF, for carcasses and doors away from direct water, with all edges sealed.
• Good option: waterproof melamine MDF, which combines the grade and the surface.
• Avoid: standard MDF anywhere near a sink, a shower, or a dishwasher.

Public buildings and commercial interiors

• First choice: FR MDF, where the fire code names a reaction-to-fire class.
• Good option: standard MDF, in areas of the same project with no fire requirement.
• Avoid: assuming one grade covers both fire and moisture needs.

Door skins and thin hard parts

• First choice: HDF, for moulded and flush door faces.
• Good option: thin standard MDF, for drawer bottoms and back panels.
• Avoid: specifying thick HDF as a general strength upgrade.

Common Misconceptions About MDF Grades

Most specification errors trace back to a small set of beliefs about MDF grades. These five come up most often in buyer questions.

• MR MDF is waterproof. It is not. It resists humidity, and it still swells in standing water.
• FR MDF is fireproof. It is not. It slows flame spread and limits burning droplets, but it burns.
• HDF is just thicker MDF. It is not. HDF is denser at any given thickness, and door skin HDF is supplied thin.
• Every green board is equal. Color is a mill marking. Real moisture performance sits in the test report.
• Faced panels need no edge banding. The facing covers the two faces, never the cut edges.

FAQs

What is the difference between MR MDF and FR MDF?
MR MDF resists humidity, and FR MDF slows flame spread. They solve different problems. A project needing both should confirm which property the building code actually requires before ordering.

Can MDF be used in a bathroom?
Only MR grade, and only with every edge and face sealed. Standard MDF swells permanently once water reaches the fibers, and no MDF grade suits direct water contact.

How can MR MDF be identified?
Check the spec sheet or edge stamp for an EN 622-5 MDF.H reference or the mill’s equivalent grade. Some mills also dye the core green, but color alone is not proof.

Is HDF stronger than MDF?
Yes. HDF is denser, so it gives a harder surface and lower thickness swelling. It costs more per sheet and is normally supplied thin for door skins.

How should a grade be specified on an export order?
State density, thickness, resin type, emission class, and surface finish. Naming the emission standard of the destination market keeps quotes comparable.

Conclusion

The four MDF panel types answer four different questions. Standard MDF is the baseline for dry interiors, MR MDF handles humid rooms, FR MDF meets fire codes in public spaces, and HDF delivers a hard, thin, stable face for door skins. Grade, thickness, surface, and emission class should all be fixed before quotes are compared, since two prices for “MDF” may describe two very different panels. Full specifications for the MDF and HDF grades discussed above can be reviewed at SUMEC Building Material.
