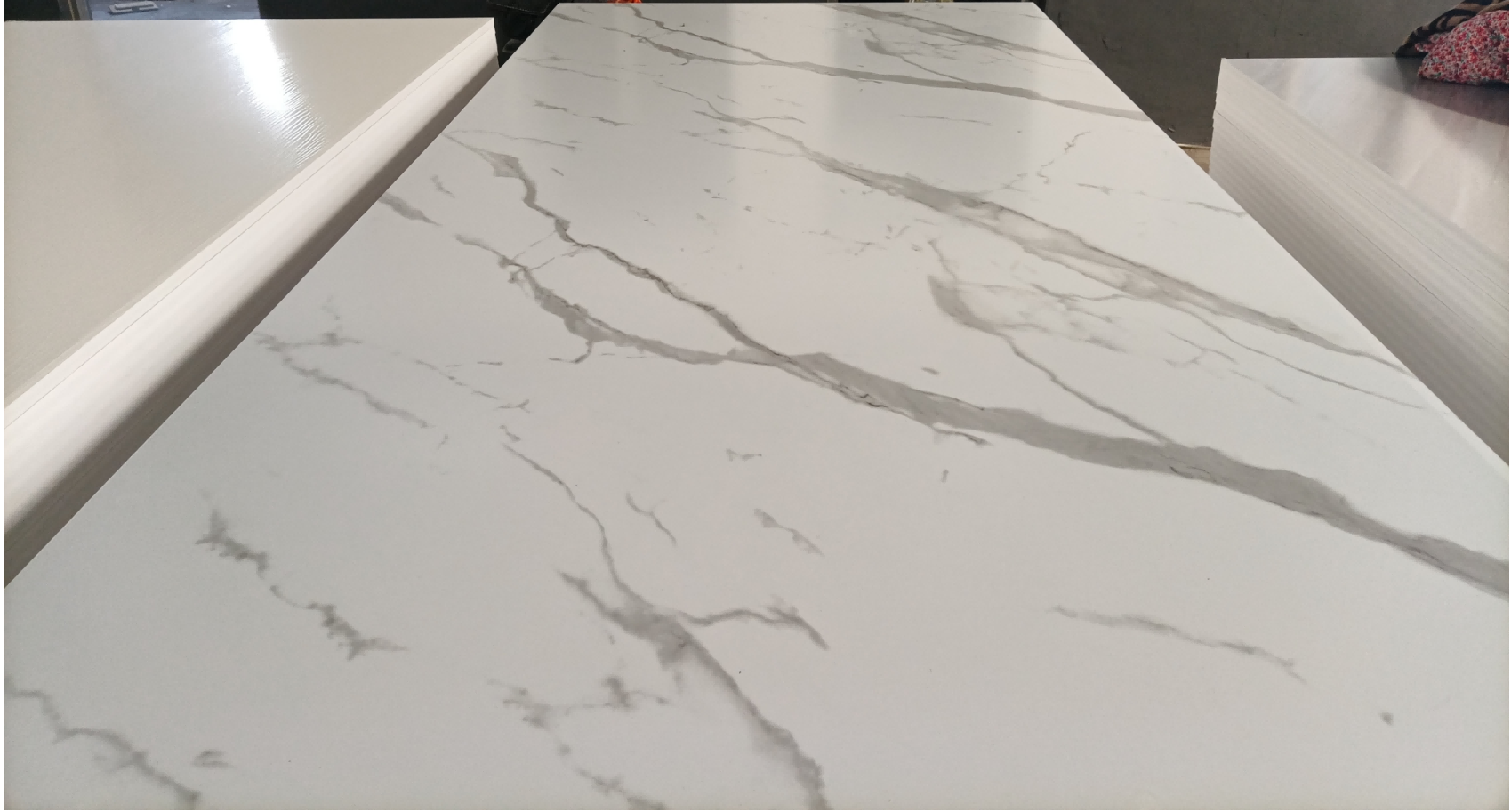

Laminated PVC Foam Board

Description
Laminated PVC Foam Board is a versatile and durable material made from polyvinyl chloride (PVC) foam, enhanced with a decorative surface layer applied through lamination. This process improves its appearance, durability, and range of applications, making it an ideal choice for interior decoration, furniture, and advertising.
Lamination Options & Materials
✅ Wood Grain Finish – Oak, walnut, teak, etc.
✅ Marble & Stone Effect – Elegant and natural-looking designs
✅ High-Gloss Solid Colors – Sleek and modern appearance
✅ Matte & Textured Finishes – Subtle and refined surfaces
Lamination Materials:
PVC Film – Lightweight, cost-effective, and widely used
PET Film – High durability, scratch-resistant, and glossy finish
HPL (High-Pressure Laminate) – Premium quality, impact-resistant, and highly durable
This combination of varied finishes and high-quality lamination materials makes Laminated PVC Foam Board a superior choice for both aesthetic and functional applications.
Detail
Production Process
RAW MATERIAL PREPARATION
– Collect raw materials such as wood logs, sawmill residues, and recycled wood.
– Remove impurities (e.g., metal, stones) and debark the logs.
– Cut the materials into small chips (2-5cm in length) using chippers.
FIBER PRODUCTIONG
– Steam the wood chips in a digester at 160-180°C for 20-30 minutes to soften the lignin.
– Grind the softened chips into fine fibers using a defibrator (mechanical or thermal-mechanical process).
FIBER DRYING
– Dry the fibers in a rotary dryer to reduce moisture content to 8-12%.
– Separate and screen the dried fibers to remove oversize particles.
GLUING AND ADDITIVE APPLICATION
– Mix the fibers with synthetic resin (mainly urea-formaldehyde resin) at a ratio of 8-12% of fiber weight.
– Add wax emulsion (for water resistance) and curing agents as needed.
– Ensure uniform distribution of adhesives through a blending system.
MAT FORMING
– Convey the fiber-resin mixture to a forming machine.
– Form a continuous, uniform loose mat with controlled thickness and density.
PRE-PRESSING
– Compress the loose mat in a pre-press machine to reduce volume and improve stability.
– Form a semi-hardened slab for easier handling in subsequent processes.
HOT PRESSING
– Transfer the pre-pressed slab to a multi-layer hot press.
– Apply high temperature (180-220°C) and pressure (2.5-4 MPa) for 3-10 minutes.
– The heat cures the resin, and pressure bonds the fibers into a solid board.
COOLING AND TRIMMING
– Cool the hot-pressed boards to room temperature using cooling racks or fans.
– Trim the edges to achieve standard dimensions (e.g., 2440×1220mm) with saws.
SANDING
– Sand both surfaces of the boards using multi-head sanding machines.
– Achieve smoothness and precise thickness (typically 3-30mm).
QUALITY INSPECTION AND PACKING
– Inspect boards for defects (e.g., cracks, uneven density, surface imperfections).
– Grade the qualified boards based on quality standards.
– Stack and package the boards for storage or shipment.
Quality Control & Packing
