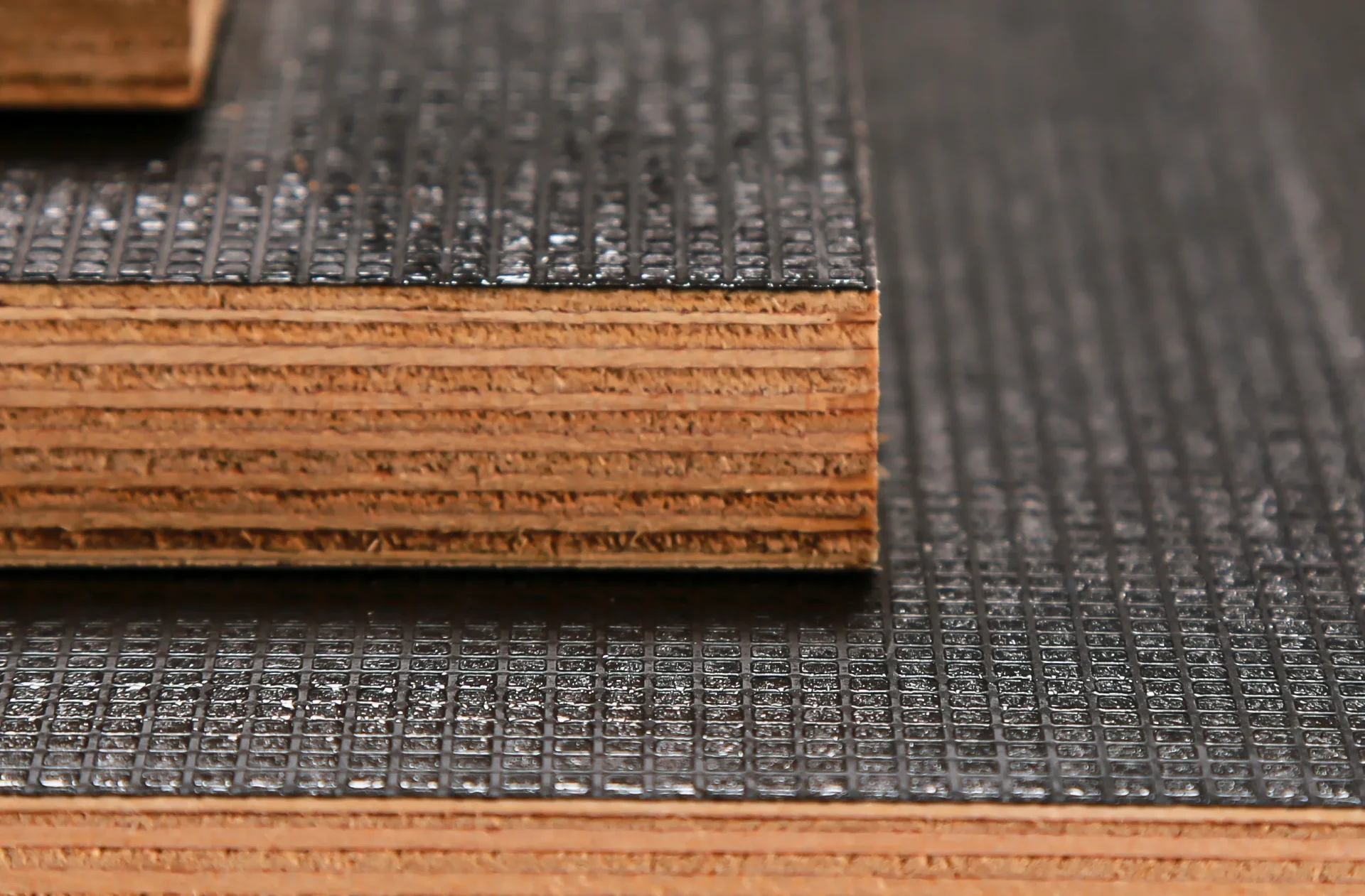

Water Proof Anti-slip Film Faced Plywood is made using hardwood and covered with a layer of waterproof phenolic film. The wear side has a rough antislip pattern and the reverse side is smooth film or raw plywood as needed. The edges of anti-slip plywood are sealed 3 times with waterproof paint. The wire mesh surface has high wear resistance and Anti-Slip properties. It is designed specially for internal & external applications such as farmwork, shop fitting, trailer bases, walkways and more. It offers an anti-slip mesh on one side & a smooth film face finish on the other side.
Anti-slip Film Faced Plywood is made in a similar fashion to regular smooth phenolic film faced panels with the additional process of applying a patterned, metallic press to the face to create the appropriate design. It’s a ideal products for the floors of commercial vehicles and walkways .
Water Proof Anti-slip Film Faced Plywood is manufactured with a quality Plywood core with a anti-slip mesh pattern on one side & a smooth film face finish on the under side. These boards are manufactured to high standards making them resistant to corrosion and moisture, making them the most durable choice especially for external application. We can also cut any piece of Plywood to your required size or pack together as many sheets as you require, delivery is offered or collections can be made from our depot for savings.
세부 정보
생산 프로세스
RAW MATERIALS STORAGE
We have several warehouses to store all our Raw Materials like Poplar Veneer, Hardwood Veneer, Sapelli/Bintangor/Okoume/Pencil Cedar/Pine Face/Back, etc. Once new raw materials delivered into our warehouses, our workers will inspect all and place different grade ram materials into different warehouses.
RAW MATERIALS PRETREATMENT
Once production started, our workers will pretreat the raw materials including the sides joint, gluing.
VENEERS ASSEMBLE
Our workers will assemble the wood veneers one layer by one layer on the assembly line. Like the 18MM will consist of 11 layers wood veneers.
RAW BOARDS PREPRESS
After Veneer Assemble Process, all the Raw Boards need to be prepressed by Cold Press Machine. So that the Raw Boards can be shaped into Raw Plywood. This process need at least 2 hours.
RAW PYWOOD HOT PRESS
Shaped Raw Plywood will be laminated by Hot Press Machine. This process need at least 1 hour. After Hot Press, the Raw Plywood bonding will be strong.
RAW PYWOOD REPATCHING & PUTTYING
This process is to fill the gap on the surface of raw plywood.
RAW PYWOOD SANDING
Put the Raw Plywood into Sanding Machine. After sanding, the raw plywood surface become smooth, and thickness will be even also.
FACE/BACK VENEER ASSEMBLE
Raw Plywood will be glued firstly. Then workers will place the face/back veneer like Sapelli /Bintangor/Okoume/Pencil Cedar on the both sides of raw plywood.
COLD PRESS
After Face/Back Veneer Assemble Process, plywood will be placed into Cold Press Machine again. So that the Face/Back Veneer will bond with the raw plywood initialy. This process need at least 1 hour.
LAMINATED PYWOOD HOT PRESS
This process need at least 30 minutes. After second Hot Press, Face/Back Veneer will bond with the raw plywood strong.
CUTTING & POLISHING
All plywood will be cut into standard size like1220X2440MM. Then plywood will be polished gain to make the face/back smooth.
INSPECTION & PACKING
Inspect boards for defects (e.g., cracks, uneven density, surface imperfections). Grade the qualified boards based on quality standards. Stack and package the boards for storage or shipment.
